Jim Schmidt Diamond Abrasive Tone Hole Files for Sax

In stock

These are the smoothest, fastest cutting files you can buy. Nothing compares to diamonds.

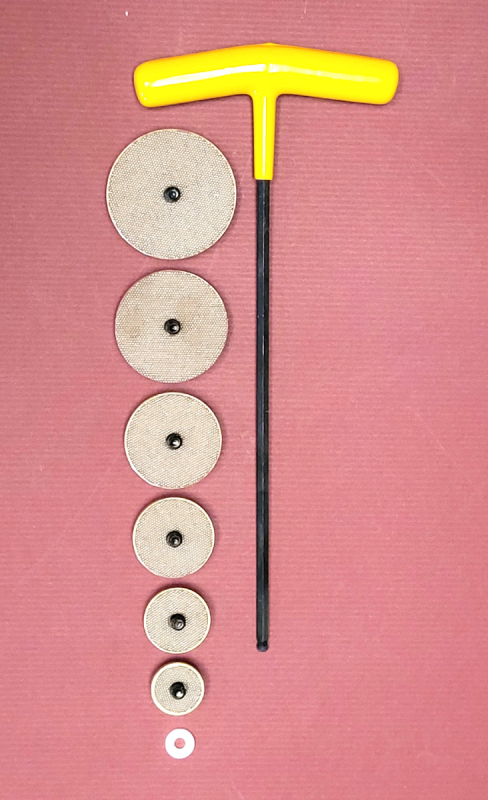

The rotary tone hole file set comes with 6 machined discs ranging from 18mm to 50mm in diameter (suitable for Altos & Tenors). The discs can be used to check the flatness of a tone hole by placing a disc (bare metal side down) over a tonehole and using a leak light. To file down high spots of a tone hole, the file is placed on the tonehole and turned with a wrench while applying pressure.

Smaller files can be stacked under larger files to act as a pilot for centering the file on the tonehole.

Grouped product items
Product Name Price Qty
Six Files and Handle Set-Medium Grit
$343.85
Six Files and Handle Set-Fine Grit
$343.85
3/4" (18.28mm) File-Medium Grit
$69.00
1" (25.4mm) File-Medium Grit
$74.75
1 1/4" (31.75mm) File-Medium Grit
$74.75
1 1/2" (38.1mm) File-Medium Grit
$80.50
1-3/4" (44.45mm) File-Medium Grit
$80.50
Out of stock
1-3/4" (44.45mm) File-Fine Grit
$80.50
2-1/2" (63.5mm) Baritone File-Medium Grit
$97.75
2-1/2" (63.5mm) Baritone File-Fine Grit
$97.75
Seven Additional Pilots
$44.28

Jim Schmidt Diamond Abrasive Tone Hole Files for Sax

$0.00

These are the smoothest, fastest cutting files you can buy. Nothing compares to diamonds.

The rotary tone hole file set comes with 6 machined discs ranging from 18mm to 50mm in diameter (suitable for Altos & Tenors). The discs can be used to check the flatness of a tone hole by placing a disc (bare metal side down) over a tonehole and using a leak light. To file down high spots of a tone hole, the file is placed on the tonehole and turned with a wrench while applying pressure. Smaller files can be stacked under larger files to act as a pilot for centering the file on the tonehole.

One small nylon pilot is included with the 6 file set for use with the smallest diamond file disc for smaller toneholes. Additional nylon pilot sets available as a set of 7 additonal pilots (below) or the set of 20 from the MusicMedic Complete file set (20 pilots)

The ball end allen wrench driver prevents tilting of the file on the tonehole. The JS tone hole files are essential for precision Saxophone work. Directions are included.
