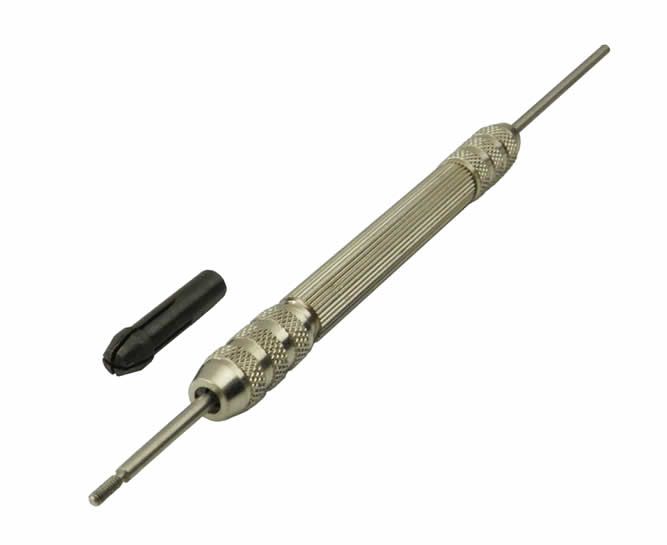

This double-sided pin vise is excellent for general repair shop use. The knurled handle and head are designed to be tightened by hand, making it quick to change tools or parts. The handle is hollow and the diameter of the head is nearly the same as the handle, which makes this an excellent pin vise to use when clearance is an issue. The hollow handle allows this pin vise to be chucked into a bench motor, even when working on a longer rod or screw.
Because the threads on the handle of this tool and the collet inside are about the same length, it is possible to modify (cut) this collet making it only slightly longer than the head. This modified and very short collet will fit between posts on woodwind instruments.
The steel collets will hold most parts that are 2.5mm (.1") in diameter or smaller.
Handle length with both heads attached: 4.25” (108mm)
